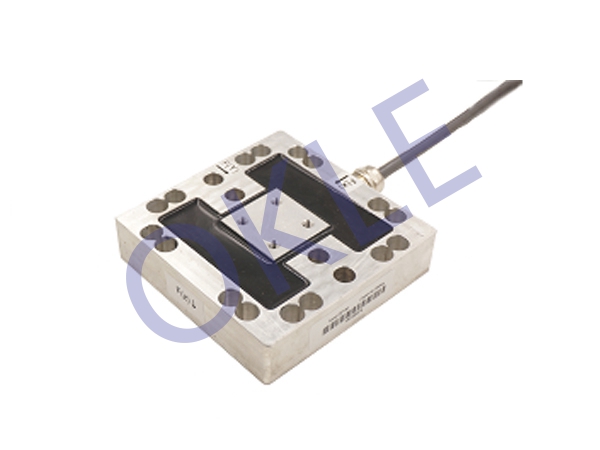

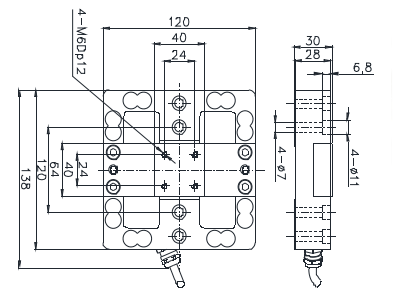

受力方式/Load Direction

配线图/ Wiring Code

参数

Specifications

技术指标/Technique

额定容量

Capacity（N）

X:50/100/200/500/1000/2000/5000

Y:50/100/200/500/1000/2000/5000

Z:50/100/200/500/1000/2000/5000

输出灵敏度

Rated output

≈1.0mV/V

零点输出

Zero balance

±2%F.S.

非线性

Non-linearity

0.1%F.S.

滞后

Hysteresis

0.1%F.S.

重复性

Repeatability

0.1%F.S.

互扰误差

Interference error

0.3%F.S.

温度灵敏度漂移

Temp.effect on output

0.1%F.S./10℃

零点温度漂移

Temp.effect on zero

0.1%F.S./10℃

输入电阻

Input impedance

785±20Ω

输出电阻

Output impedance

700±10Ω

绝缘电阻

Insulation

≥5000MΩ/100VDC

激励电压

Recommended excitation

5~12V

最大激励电压

Maximum excitation

15V

温度补偿范围

Compensated temp range

-10~40℃

工作温度范围

Operation temp range

-20~75℃

安全超载

Safe overload

150%F.S.

极限超载

Ultimate overload

300%F.S.

电缆线尺寸

Cable size

Φ5×3000mm
