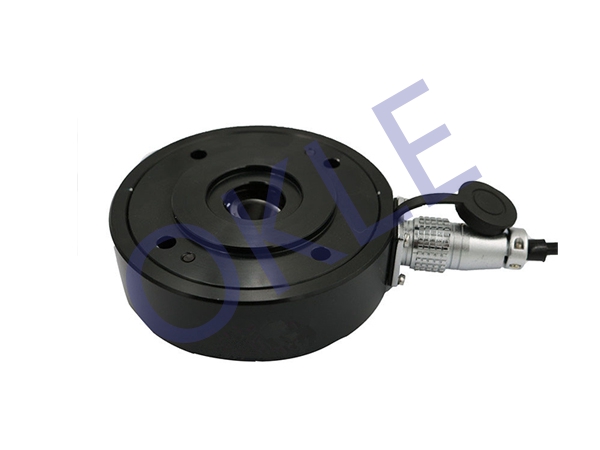

特点与用途/Features & Applications
●张力测量传感器
●结构紧凑便于安装
●防护等级：IP65
●超强防过载能力
●Static torque sensor
●Compact structure,easy to install
●IP65 protection
●high overload protection for operation

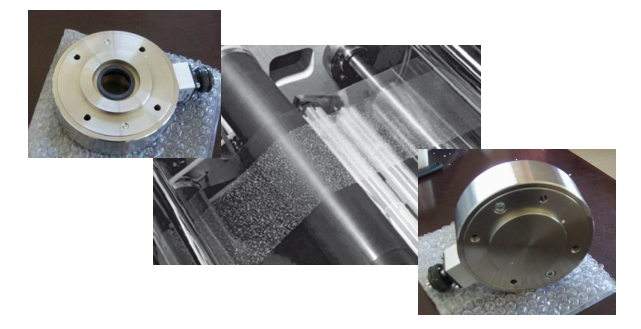

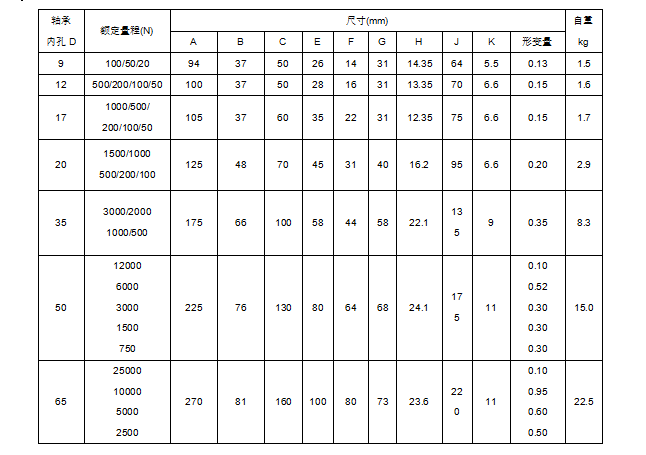

安装尺寸/Mounting Dimension
受力方式/Load Direction
| 配线图/ Wiring Code
|
参数 | Specifications | 技术指标/Technique |
额定容量 | Capacity | 20N~25kN |
输出灵敏度 | Rated output | 2.0±0.2%mV/V |
零点输出 | Zero balance | ±2% F.S. |
非线性 | Non-linearity | 0.25%F.S. |
滞后 | Hysteresis | 0.25%F.S. |
重复性 | Repeatability | 0.1%F.S. |
蠕变（30min） | Creep(30min) | 0.1%F.S. |
温度灵敏度漂移 | Temp.effect on output | 0.05%F.S./10℃ |
零点温度漂移 | Temp.effect on zero | 0.05%F.S./10℃ |
输入电阻 | Input impedance | 410±10Ω |
输出电阻 | Output impedance | 350±5Ω |
绝缘电阻 | Insulation | ≥5000MΩ/100VDC |
激励电压 | Recommended excitation | 10V |
最大激励电压 | Maximum excitation | 15V |
温度补偿范围 | Compensated temp range | -10~60℃ |
工作温度范围 | Operation temp range | -20~80℃ |
安全超载 | Safe overload | 120%F.S. |
极限超载 | Ultimate overload | 150%F.S. |
电缆线尺寸 | Cable size | Φ5×3000mm |
防护等级 | IP Class | IP65 |
