特点与用途/Features & Applications

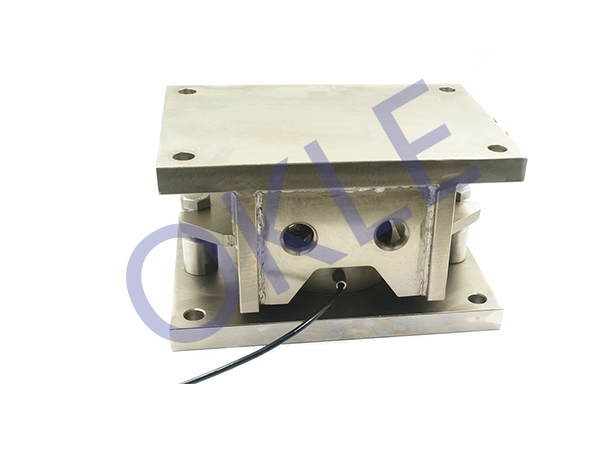

●轮辐式传感器模块
●合金钢材料
●用于试验机，汽车衡，料斗秤，各种工业称重系统等
●Pancake type load cell module
●Alloy steel
●Tension and compression application
●Mainly used for testing machine , truck scales,hopper scale and industrial measuring system

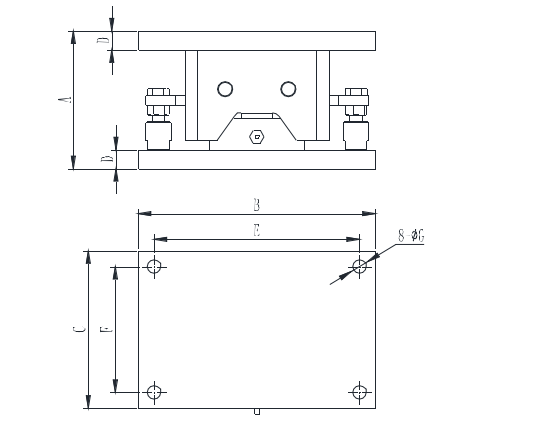

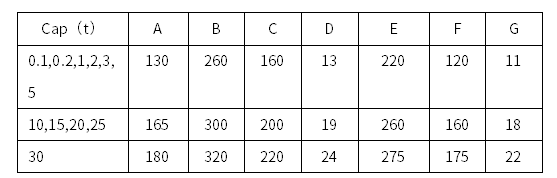

安装尺寸/Mounting Dimension
受力方式/Load Direction
| 配线图/ Wiring Code
|
参数 | Specifications | 技术指标/Technique |
额定容量 | Capacity | 0.1,0.2,1,2,3,5,10,15,20,25,30t |
输出灵敏度 | Rated output | 2.0±1%mV/V(0.1,0.2kN) 3.0±1%mV/V(1~30kN) |
零点输出 | Zero balance | ±1% F.S. |
非线性 | Non-linearity | 0.03%F.S. |
滞后 | Hysteresis | 0.03%F.S. |
重复性 | Repeatability | 0.03%F.S. |
蠕变（30min） | Creep(30min) | 0.03%F.S. |
温度灵敏度漂移 | Temp.effect on output | 0.02%F.S./10℃ |
零点温度漂移 | Temp.effect on zero | 0.02%F.S./10℃ |
输入电阻 | Input impedance | 780±10Ω |
输出电阻 | Output impedance | 700±5Ω |
绝缘电阻 | Insulation | ≥5000MΩ/100VDC |
激励电压 | Recommended excitation | 5~15V |
最大激励电压 | Maximum excitation | 20V |
温度补偿范围 | Compensated temp range | -10~40℃ |
工作温度范围 | Operation temp range | -10~70℃ |
安全超载 | Safe overload | 150%F.S. |
极限超载 | Ultimate overload | 200%F.S. |
电缆线尺寸 | Cable size | φ5×6000mm |
防护等级 | IP Class | IP67 |
