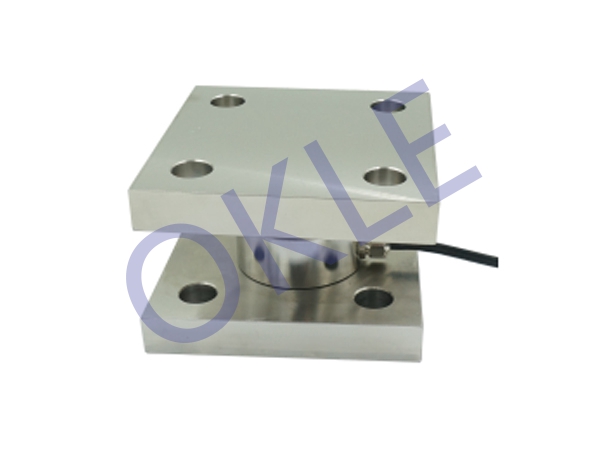

特点与用途/Features & Applications
●高度低，变形量小
●不锈钢材料
●可定制、防护等级：IP67
●适用于各种小空间的测力，广泛应用于工业、研发等领域的测量和控制
●Low profile，small deflection
●Made of stainless steel
●Customizabble,IP67 protec tion
●Suitable for force measurement in limited spaces.Widely used for industrial measurement and control， R&D and other applications

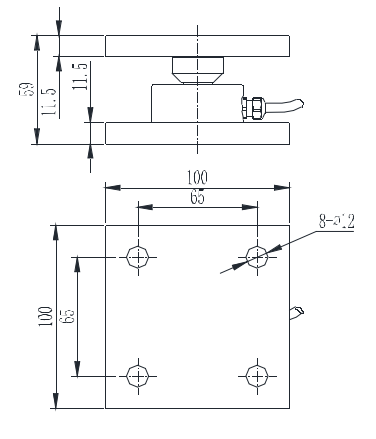

安装尺寸/Mounting Dimension
受力方式/Load Direction
| 配线图/ Wiring Code
|
参数 | Specifications | 技术指标/Technique |
额定容量 | Capacity | 1,2,5,10,20,50,75,100 kN |
输出灵敏度 | Rated output | 1.5±10%mV/V |
零点输出 | Zero balance | ±0.03 mV/V |
非线性 | Non-linearity | 0.2%F.S. |
滞后 | Hysteresis | 0.1%F.S. |
重复性 | Repeatability | 0.1%F.S. |
蠕变（30min） | Creep(30min) | 0.05%F.S. |
温度灵敏度漂移 | Temp.effect on output | 0.05%F.S./10℃ |
零点温度漂移 | Temp.effect on zero | 0.05%F.S./10℃ |
输入电阻 | Input impedance | 780±20Ω |
输出电阻 | Output impedance | 700±10Ω |
绝缘电阻 | Insulation | ≥5000MΩ/100VDC |
激励电压 | Recommended excitation | 5~15V |
最大激励电压 | Maximum excitation | 20V |
温度补偿范围 | Compensated temp range | -10~60℃ |
工作温度范围 | Operation temp range | -20~80℃ |
安全超载 | Safe overload | 150%F.S. |
极限超载 | Ultimate overload | 200%F.S. |
电缆线尺寸 | Cable size | φ4×4000mm |
材料 | Material | Stainless Steel（不锈钢） |
防护等级 | IP Class | IP67(可订制IP68) |
