Column structure obtain strong ability for anti-overload and impact resistance.

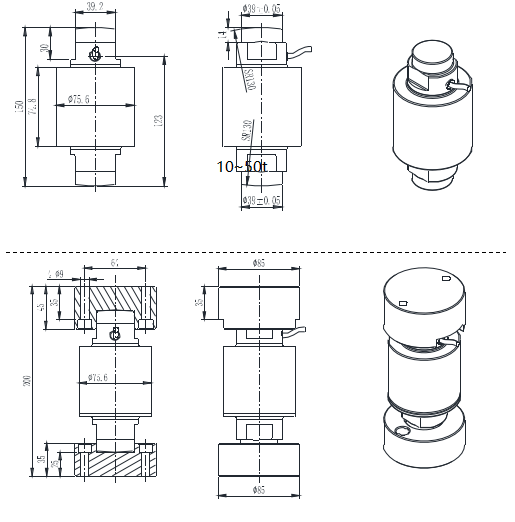

主要尺寸 Schematic diagram FA409 force transducer
技术参数Specifications
品名 | Specifications | 技术指标/Technique |
额定容量 | Capacity | 10,20,30,50t |
输出灵敏度 | Rated output | 2±0.5%mV/V |
零点输出 | Zero balance | ±2%F.S. |
非线性 | Non-linearity | 0.017% F.S. |
滞后 | Hysteresis | 0.017%F.S. |
重复性 | Repeatability | 0.017%F.S. |
蠕变（30min） | Creep(300min) | 0.017%F.S. |
温度灵敏度漂移 | Temp.effect on output | 0.01%F.S./10℃ |
零点温度漂移 | Temp.effect on zero | 0.02%F.S./10℃ |
输入电阻 | Input impedance | 780±20Ω |
输出电阻 | Output impedance | 700±10Ω |
绝缘电阻 | Insulation | ≥5000MΩ/100VDC |
激励电压 | Recommended excitation | 3~12V |
最大激励电压 | Maximum excitation | 15V |
温度补偿范围 | Compensated temp range | -10~60℃ |
工作温度范围 | Operation temp range | -30~70℃ |
安全超载 | Safe overload | 150%F.S. |
极限超载 | Ultimate overload | 200%F.S. |
电缆线尺寸 | Cable size | φ5.4×10m |
材料 | Material | 不锈钢 |
防护等级 | IP class | IP68 |
